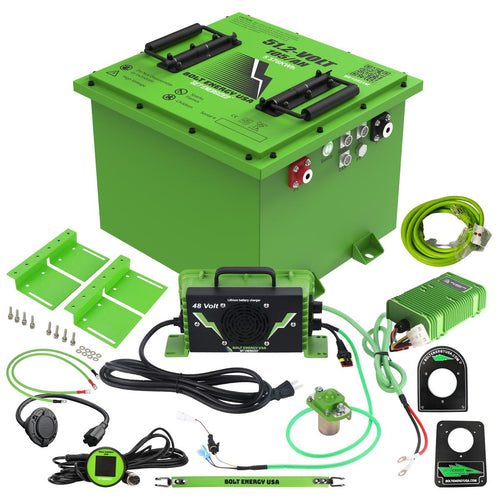

The 51V 105Ah “MINI” was developed to be the most versatile golf car battery in the marketplace. There has yet to be a traditional golf car it does not fit in. Designed for use in all 48-volt power trains. Ranges, depending on how extreme the car is modified and how the car is loaded and driven, range from 20 to 50 miles.

SPECIFICATIONS 51V 105AH “MINI"

MECHANICAL SPECIFICATIONS

•Dimensions (L x W x H): 12.8″ x 12.01″ x 10.42″

•Weight: 100.8lbs (45.7kg)

•Terminal Type: M8*1.5*25mm

•Cell Configuration: 1P16S

•Case Material: Powder Coated Steel

•Enclosure Protection: Designed with IP66 Standard

•Cell Type – Chemistry: Prismatic- LiFePO4

DISCHARGE SPECIFICATIONS

•Maximum Continuous Discharge Current: 250A

•Peak Discharge Current: 520A ± 15.6A (30S)

•BMS Discharge Current Cut-Off:

• 260 A ± A7.8A (50S)

• 520A ± 15.6A (30S)

•BMS Discharge Voltage Cut-Off: 40V

•Recommended Low Voltage Disconnect: 48.0V

•BMS Reconnect Voltage: 41.6V

•Discharge Temperature: -4 to 149°F (-20 to 65°C)

ELECTRICAL SPECIFICATION

•Nominal Voltage: 51.2V

•Working Voltage: 43.2 – 58.4V

•Recommended Voltage: 48.0V – 57.0V

•Nominal Capacity: 105Ah

•Energy: 5,376Wh

•Capacity @ 25A: 252 min

•Efficiency: 0.99

•Self Discharge: <3% per Month

CHARGE SPECIFICATIONS

•Recommended Charge Current: 5 – 52A

•Maximum Input Current: 350A

•Charge Current Cut-Off: 375A

•BMS Charge Voltage Cut-Off: 58.5V

•Reconnect Voltage: <58.5V

•Charging Temp. Range: 34°F to 140°F (0-60°C)

COMMUNICATION

•Bluetooth: Bluetooth receiver

•CAN: CAN port for testing battery
