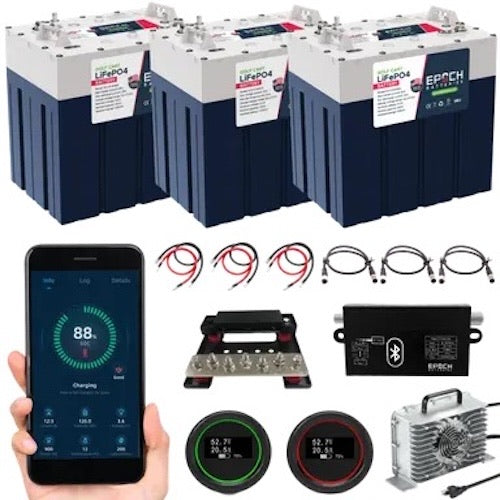

- LiFePO4 Chemistry
- 90Ah Capacity (30-40 miles runtime for standard golf cart)
- 180A Max Continuous Discharge (300A 10S Discharge) (600A 3S Peak Discharge)

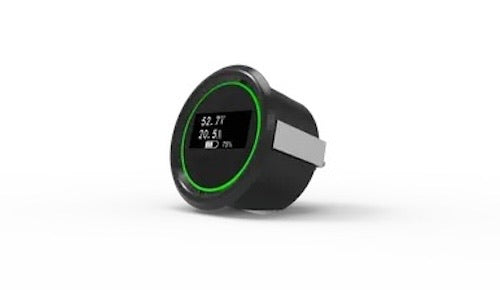

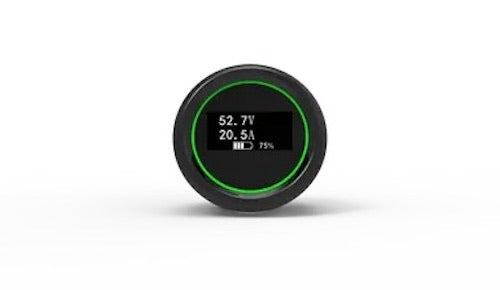

- Bluetooth Module INCLUDED
- 0 to 100% Charge in 6 hours with included 48V 15A Charger
- IP67 Rated, Dust and WATERPROOF
- CAN Bus Communication allows battery modules to work in sync
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty

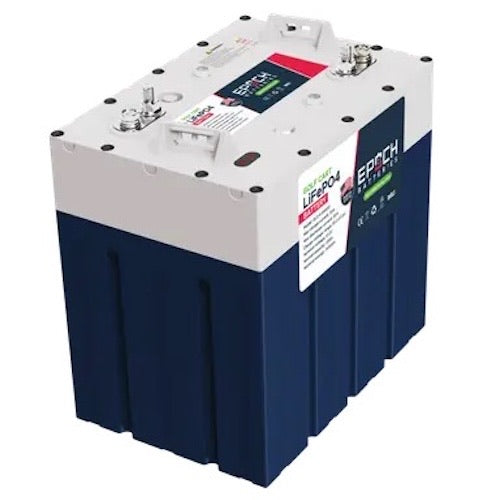

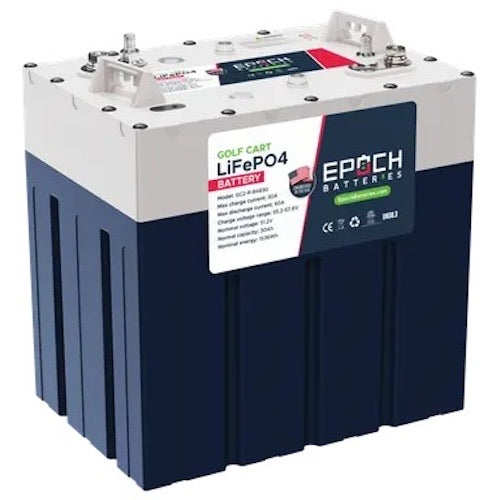

CONFIGURATION
Cell Configuration: 16S
Chemistry: LiFePO4
CURRENT
Ah Capacity: 90Ah
Max Continuous Discharge Amps: 180A
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 300A (10 Seconds) - 600A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
VOLTAGE
Voltage: 48
Max Charge Voltage: 57.6V
Operating Voltage Range: 40.0 - 57.6V
TEMPERATURE
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)
Weight: 33 (LBS) (per module x3)
DIMENSIONS
Length: 10.25 (inches)
Width: 7 (per module x3) (inches)
Height: 11 (inches)

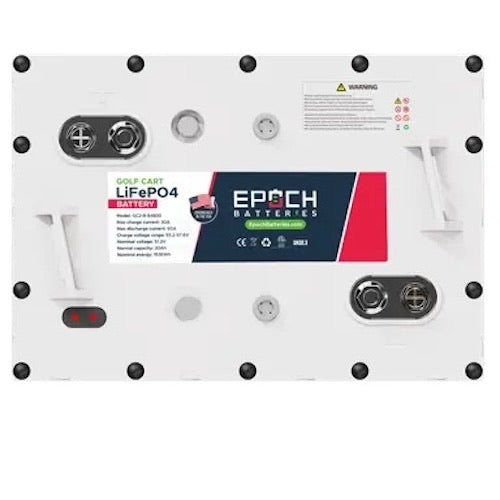

M8 Terminals - Torque Tension Recommendation is 8-12N·M
Pack Certifications: UN38.3, CE
Cell Certifications: UL1642, UL2580, UN38.3
- To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
- NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
