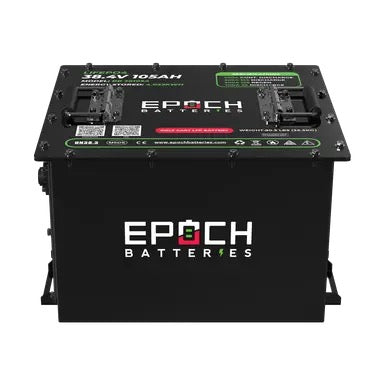

36V 105Ah EPOCH Lithium Golf Cart Battery Conversion Kit

• Complete Lithium Conversion Kit
• 36V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED
• Bluetooth App (iOS & Android)
• Over the air firmware updates available
• 200A Max Continuous Discharge
• 300A @ 15s, 700A @ 2s Peak Discharge
• 100A Max Continuous Charge
• 300A @ 15s Peak Charge/Regen
• 3,500 Cycle Life
• 11 Year Warranty

CONFIGURATION

Cell Configuration: 1P12S

Chemistry: LiFePO4

CURRENT

Ah Capacity: 105Ah

Max Continuous Discharge Amps: 200A

Max Charge Current Amps: 100A Continuous, 300A @ 15s

Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s

Series | Parallel: Max (2) in Parallel

VOLTAGE

Voltage: 38.4V

Max Charge Voltage: 43.8V

Operating Voltage Range: 30 - 43.8V

TEMPERATURE

Charge Temp Range: 0°C (32°F) / 55°C (131°F)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight: 81 (LBS)

DIMENSIONS

Length: 14.6 (inches)

Width: 13.4 (inches)

Height: 9.9 (inches)
