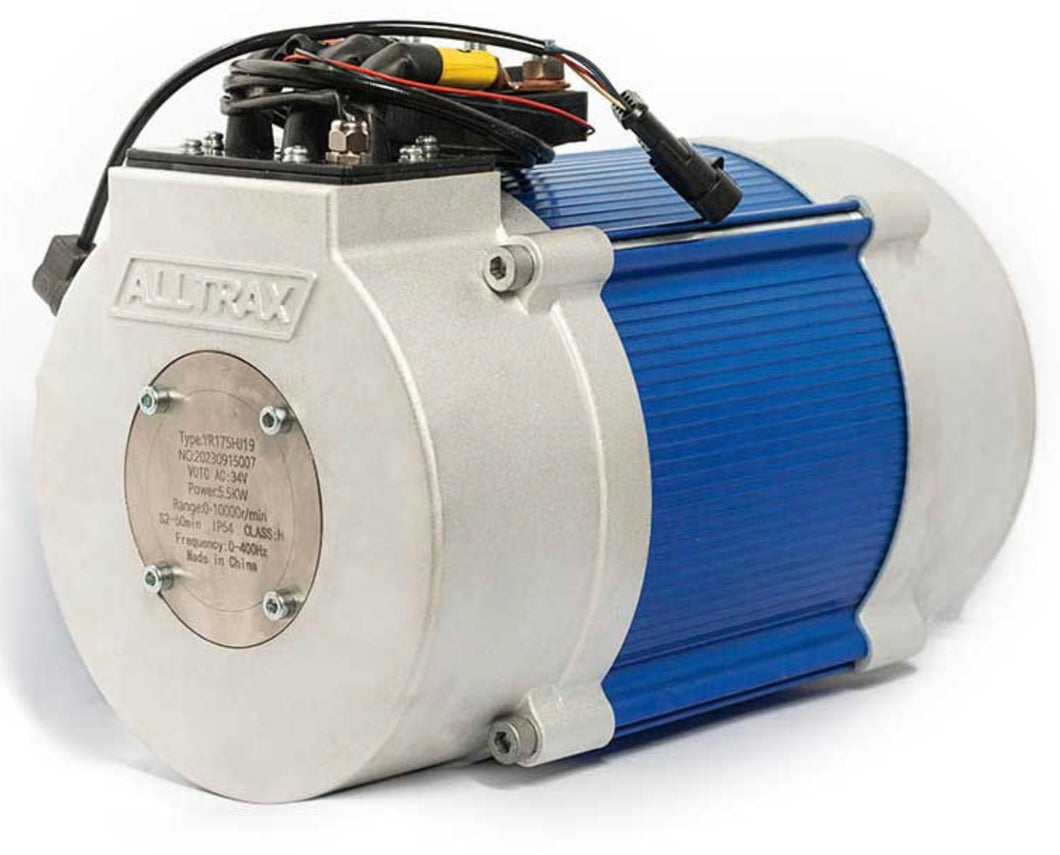

Alltrax E-Z-GO 5.5kW 19-tooth AC high-performance golf cart motor

Alltrax E-Z-GO 5.5kW 19-Tooth AC High-Performance Motor

SKU: 221-AC55KW-19

$1,149.99
$1,149.99
Free shipping at $329+ (Lower 48) Lower 48: $12 shipping below $329; free shipping at $329+. Allow 1–5 business days for processing.
Shipping rates and delivery details

Lower 48: $12 shipping under $329 • Free shipping at $329+. Hawaii and Alaska shipping charges will be added manually.

Lower 48: allow 1–5 business days for processing, then an estimated 2–7 business days in transit. Estimates are not guaranteed.

Allow 1–5 business days for processing. Delivery timing varies. Shipping details

Returns and warranty before you buy

Request an eligible return within 7 days of delivery. Approved non-defective returns have a 25% restocking fee; return shipping is your responsibility. Items must be unused, uninstalled and in original packaging. Exclusions apply.

Read the full return policy

Manufacturer warranty terms and exclusions apply. Contact us if you need the warranty for this exact item confirmed before ordering.

Need help choosing the right part? Contact us with your cart year, make and model.

info@winniesgolfcarts.com  •  Contact Us  •  Shipping Policy  •  Returns

SKU: 221-AC55KW-19

Alltrax 5.5 kW induction performance motor with the 19-tooth E-Z-GO motor face for compatible Alltrax AC1 conversion systems.

Verified Application

  • 19-tooth E-Z-GO drivetrain applications using compatible Alltrax AC1 conversion/controller hardware
  • Alltrax documents E-Z-GO AC1 conversion applications including TXT48, MPT1000, PDS2, Shuttle and DC L6 configurations
  • Motor only: controller, harness and conversion hardware are not included
  • Not a stock DC-controller replacement: factory DC vehicles require the appropriate AC1 conversion/controller system

Alltrax Motor Specifications

  • 5.5 kW continuous output for 60 minutes at 48V
  • 24–72V DC battery-system application range published by Alltrax
  • Up to 30 kW for 5 seconds
  • 21 HP at 1,400 RPM peak-performance rating
  • 110 lb-ft torque
  • 13,000 RPM maximum speed
  • 19-tooth E-Z-GO face/spline

Installation Notes

  • Verify the 19-tooth spline, exact E-Z-GO drivetrain, controller/conversion configuration and clearance before ordering.
  • Alltrax does not publish a model-year chart for the standalone 19-tooth motor.
✓ Fitment verified

Match your cart to the listed application and installation requirements.

View fitment and installation requirements
✓ Fitment verified

Verified for the application listed below. Your cart must match its configuration and installation requirements.

Brand and model narrow the collection. Check the listing for year, voltage, drivetrain and installation requirements.

Brand
EZGO
Model
TXT48, MPT1000, PDS2, Shuttle, DC L6
Year
Alltrax documents these E-Z-GO platforms in compatible AC1 conversion families but does not publish a standalone-motor model-year chart; verify the 19-tooth drivetrain and exact AC1 conversion/controller application before ordering.

AC

Alltrax 5.5 kW induction motor with 19-tooth E-Z-GO face for compatible AC1 conversion systems. Alltrax documents E-Z-GO conversion applications including TXT48, MPT1000, PDS2, Shuttle and DC L6 configurations. The motor is rated at 5.5 kW for 60 minutes at 48V, up to 30 kW for 5 seconds, 21 HP at 1400 RPM, 110 lb-ft torque and 13,000 RPM max; Alltrax publishes a 24–72V DC battery-system application range. This is motor-only and is not a stock DC-controller replacement. Verify 19-tooth spline, exact drivetrain, controller/conversion configuration and clearance before ordering.

Fitment and installation requirements

Get help choosing the right part

Your selected product and cart details are included below. Tell us what you are replacing or trying to improve.

To send photos, open an email and attach them before sending. This website form sends text and image links, not uploaded attachments.

Helpful photos: the whole cart, its identification label, the old part number, and visible connectors. Do not disconnect wiring just to take a photo.

Open email to attach photos

Edit cart details

Cart details are saved on this device only. Do not enter personal information here. Changing carts clears the previous configuration.

Unknown details will not be treated as confirmed.

Not sure which cart you have?

Use the vehicle label and manufacturer guidance to identify your cart. Body panels, batteries and drivetrains can be changed; a model name alone does not prove part compatibility.

Club Car

Club Car: check the barcode label below the passenger-side cup holder or above the pedals. The model letters are followed by the model-year and production-week digits. Use the manufacturer directory to confirm the prefix.

Open manufacturer identification guide

E-Z-GO

E-Z-GO: for models purchased before 2023, the manufacturer points to the steering column or below the driver-side seat. Location varies by model. Photograph the complete label, including the manufacturer code.

Open manufacturer identification guide

Yamaha

Yamaha: check under the seat at the floorboard/motor compartment, on the frame under the rear bumper, or beneath the driver-side glove box. Use the full identification label, not just the body appearance.

Open manufacturer identification guide

Park securely, set the parking brake and remove the key before looking for labels. Do not touch electrical terminals or work underneath an unsupported vehicle.
