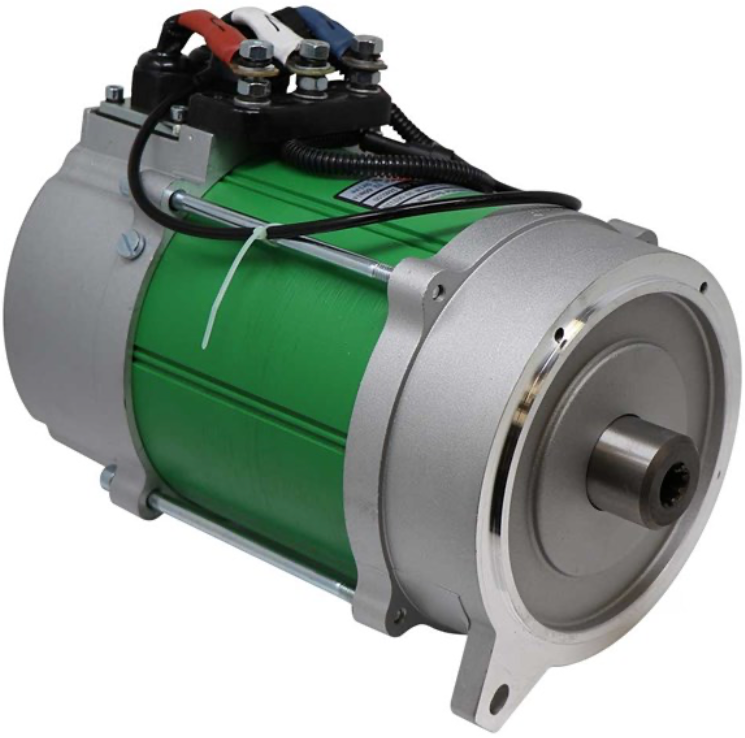

Navitas MAC987 3kW 10-tooth AC golf cart motor with parking brake

Navitas MAC987 3kW 10-Tooth AC Golf Cart Motor with Parking Brake

SKU: 221-10000987

$1,149.99
$1,149.99
Free shipping at $329+ (Lower 48) Lower 48: $12 shipping below $329; free shipping at $329+. Allow 1–5 business days for processing.
Shipping rates and delivery details

Lower 48: $12 shipping under $329 • Free shipping at $329+. Hawaii and Alaska shipping charges will be added manually.

Lower 48: allow 1–5 business days for processing, then an estimated 2–7 business days in transit. Estimates are not guaranteed.

Allow 1–5 business days for processing. Delivery timing varies. Shipping details

Returns and warranty before you buy

Request an eligible return within 7 days of delivery. Approved non-defective returns have a 25% restocking fee; return shipping is your responsibility. Items must be unused, uninstalled and in original packaging. Exclusions apply.

Read the full return policy

Manufacturer warranty terms and exclusions apply. Contact us if you need the warranty for this exact item confirmed before ordering.

Need help choosing the right part? Contact us with your cart year, make and model.

info@winniesgolfcarts.com  •  Contact Us  •  Shipping Policy  •  Returns

SKU: 221-10000987

Navitas model: MAC987 / 10-000987

Navitas 3 kW high-performance AC induction motor with a 10-tooth spline and integrated 48V parking brake for compatible golf-car and low-speed EV applications.

Manufacturer Specifications

  • AC induction motor
  • Rated power: 3 kW
  • Rated motor voltage: 25.5V AC RMS
  • Rated current: 97A
  • Rated speed: 3921 RPM
  • Operating range: 0–6800 RPM
  • Frequency: 0–134 Hz
  • 10-tooth spline
  • 48V ±10% parking brake
  • 46 Nm static brake torque
  • Class H insulation
  • IP44 protection
  • External speed sensor
  • Internal temperature sensor

Application Notes

  • Navitas lists MAC987 for golf cars, utility vehicles, personnel carriers, UTVs and hunting buggies.
  • Navitas does not publish a make/model/year chart for this exact motor.
  • Confirm 10-tooth spline, required parking-brake configuration, controller compatibility, mounting and harness/sensor configuration before ordering.
  • This is an AC motor and requires a compatible AC controller/conversion system where the original vehicle was DC.

The 25.5V AC RMS motor rating is an internal motor specification and is not the vehicle battery-pack voltage. The parking brake is rated 48V ±10%.

✓ Fitment verified

Match your cart to the listed application and installation requirements.

View fitment and installation requirements
✓ Fitment verified

Verified for the application listed below. Your cart must match its configuration and installation requirements.

Brand and model narrow the collection. Check the listing for year, voltage, drivetrain and installation requirements.

Year
Navitas does not publish make/model/year fitment for MAC987; confirm application by 10-tooth spline, 48V parking-brake requirement, compatible AC controller/conversion setup, mounting, and sensor/harness configuration.

AC

Navitas MAC987 / 10-000987 is a 3 kW high-performance AC induction motor with a 10-tooth spline and integrated 48V ±10% parking brake. Navitas rates the motor at 25.5V AC RMS, 97A, 3921 RPM rated speed, 0–6800 RPM operating range, 0–134 Hz, Class H insulation and IP44 protection, with an external speed sensor and internal temperature sensor. Navitas lists applications including golf cars, utility vehicles, personnel carriers, UTVs and hunting buggies but does not publish a make/model/year chart for this exact motor. Confirm spline, parking-brake requirement, compatible AC controller/conversion system, mounting and harness/sensor configuration before ordering. The 25.5V AC RMS motor rating is not the vehicle battery-pack voltage.

Fitment and installation requirements

Get help choosing the right part

Your selected product and cart details are included below. Tell us what you are replacing or trying to improve.

To send photos, open an email and attach them before sending. This website form sends text and image links, not uploaded attachments.

Helpful photos: the whole cart, its identification label, the old part number, and visible connectors. Do not disconnect wiring just to take a photo.

Open email to attach photos

Edit cart details

Cart details are saved on this device only. Do not enter personal information here. Changing carts clears the previous configuration.

Unknown details will not be treated as confirmed.

Not sure which cart you have?

Use the vehicle label and manufacturer guidance to identify your cart. Body panels, batteries and drivetrains can be changed; a model name alone does not prove part compatibility.

Club Car

Club Car: check the barcode label below the passenger-side cup holder or above the pedals. The model letters are followed by the model-year and production-week digits. Use the manufacturer directory to confirm the prefix.

Open manufacturer identification guide

E-Z-GO

E-Z-GO: for models purchased before 2023, the manufacturer points to the steering column or below the driver-side seat. Location varies by model. Photograph the complete label, including the manufacturer code.

Open manufacturer identification guide

Yamaha

Yamaha: check under the seat at the floorboard/motor compartment, on the frame under the rear bumper, or beneath the driver-side glove box. Use the full identification label, not just the body appearance.

Open manufacturer identification guide

Park securely, set the parking brake and remove the key before looking for labels. Do not touch electrical terminals or work underneath an unsupported vehicle.
