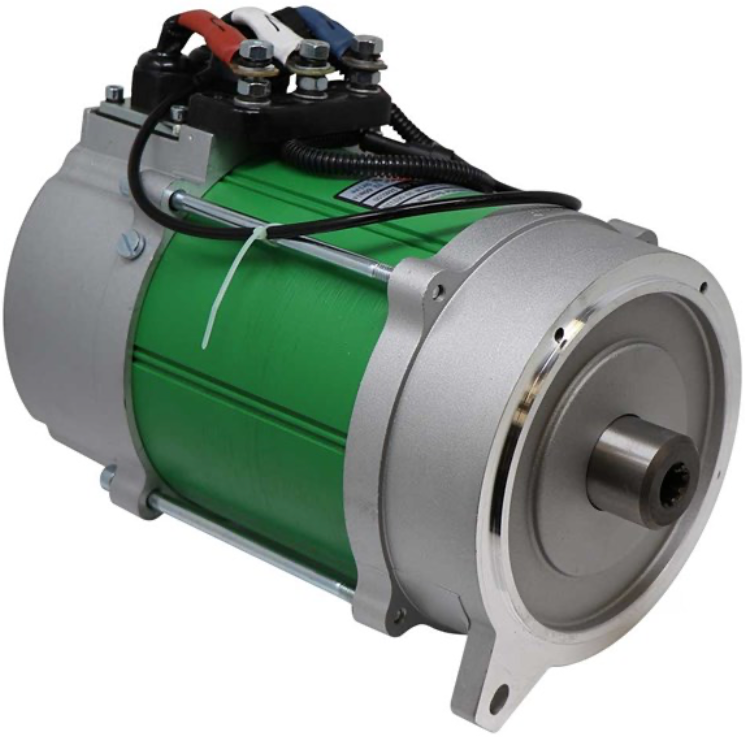

Navitas MAC979 4kW 10-tooth AC golf cart motor with parking brake

Navitas MAC979 4kW 10-Tooth AC Golf Cart Motor with Parking Brake

SKU: 221-10000979

$1,299.99
$1,299.99
Free shipping at $329+ (Lower 48) Lower 48: $12 shipping below $329; free shipping at $329+. Allow 1–5 business days for processing.
Shipping rates and delivery details

Lower 48: $12 shipping under $329 • Free shipping at $329+. Hawaii and Alaska shipping charges will be added manually.

Lower 48: allow 1–5 business days for processing, then an estimated 2–7 business days in transit. Estimates are not guaranteed.

Allow 1–5 business days for processing. Delivery timing varies. Shipping details

Returns and warranty before you buy

Request an eligible return within 7 days of delivery. Approved non-defective returns have a 25% restocking fee; return shipping is your responsibility. Items must be unused, uninstalled and in original packaging. Exclusions apply.

Read the full return policy

Manufacturer warranty terms and exclusions apply. Contact us if you need the warranty for this exact item confirmed before ordering.

Need help choosing the right part? Contact us with your cart year, make and model.

info@winniesgolfcarts.com  •  Contact Us  •  Shipping Policy  •  Returns

SKU: 221-10000979

Navitas model: MAC979 / 10-000979

Navitas 4 kW AC induction performance motor with a 10-tooth spline and integrated parking brake for compatible golf-car and low-speed EV applications.

Manufacturer Specifications

  • 4 kW AC induction motor
  • Rated motor voltage: 34V AC RMS
  • Rated current: 91A
  • Rated speed: 3,600 RPM
  • Operating range: 0–6,800 RPM
  • Frequency: 0–123 Hz
  • 10-tooth spline
  • 48V ±10% parking brake
  • 46 Nm static brake torque
  • Class H insulation
  • IP44 protection
  • External speed sensor
  • Internal temperature sensor

Application Notes

  • Navitas lists MAC979 for golf cars, utility vehicles, personnel carriers, UTVs and hunting buggies.
  • Navitas does not publish a make/model/year chart for this exact MAC979 motor.
  • Confirm 10-tooth spline, parking-brake requirement, compatible AC controller/conversion system, mounting and harness/sensor configuration before ordering.
  • A vehicle originally equipped with DC drive requires an appropriate compatible AC conversion/controller system.

The 34V AC RMS motor rating is an internal motor specification, not vehicle battery-pack voltage. The parking brake is rated 48V ±10%.

✓ Fitment verified

Match your cart to the listed application and installation requirements.

View fitment and installation requirements
✓ Fitment verified

Verified for the application listed below. Your cart must match its configuration and installation requirements.

Brand and model narrow the collection. Check the listing for year, voltage, drivetrain and installation requirements.

Year
Navitas does not publish make/model/year fitment for MAC979; confirm application by 10-tooth spline, parking-brake requirement, compatible AC controller/conversion setup, mounting and sensor/harness configuration.

AC

Navitas MAC979 / 10-000979 is a 4 kW AC induction motor with a 10-tooth spline and 48V ±10% parking brake. The current Navitas data sheet rates it at 34V AC RMS, 91A, 3600 RPM rated speed, 0–6800 RPM operating range and 0–123 Hz, with Class H insulation, IP44 protection, an external speed sensor and internal temperature sensor. Navitas lists general applications including golf cars, utility vehicles, personnel carriers, UTVs and hunting buggies, but does not publish a make/model/year chart for this exact motor. The 34V AC RMS motor rating is not vehicle battery-pack voltage. Confirm controller/conversion, spline, brake, mounting and harness/sensor compatibility before ordering.

Fitment and installation requirements

Get help choosing the right part

Your selected product and cart details are included below. Tell us what you are replacing or trying to improve.

To send photos, open an email and attach them before sending. This website form sends text and image links, not uploaded attachments.

Helpful photos: the whole cart, its identification label, the old part number, and visible connectors. Do not disconnect wiring just to take a photo.

Open email to attach photos

Edit cart details

Cart details are saved on this device only. Do not enter personal information here. Changing carts clears the previous configuration.

Unknown details will not be treated as confirmed.

Not sure which cart you have?

Use the vehicle label and manufacturer guidance to identify your cart. Body panels, batteries and drivetrains can be changed; a model name alone does not prove part compatibility.

Club Car

Club Car: check the barcode label below the passenger-side cup holder or above the pedals. The model letters are followed by the model-year and production-week digits. Use the manufacturer directory to confirm the prefix.

Open manufacturer identification guide

E-Z-GO

E-Z-GO: for models purchased before 2023, the manufacturer points to the steering column or below the driver-side seat. Location varies by model. Photograph the complete label, including the manufacturer code.

Open manufacturer identification guide

Yamaha

Yamaha: check under the seat at the floorboard/motor compartment, on the frame under the rear bumper, or beneath the driver-side glove box. Use the full identification label, not just the body appearance.

Open manufacturer identification guide

Park securely, set the parking brake and remove the key before looking for labels. Do not touch electrical terminals or work underneath an unsupported vehicle.
