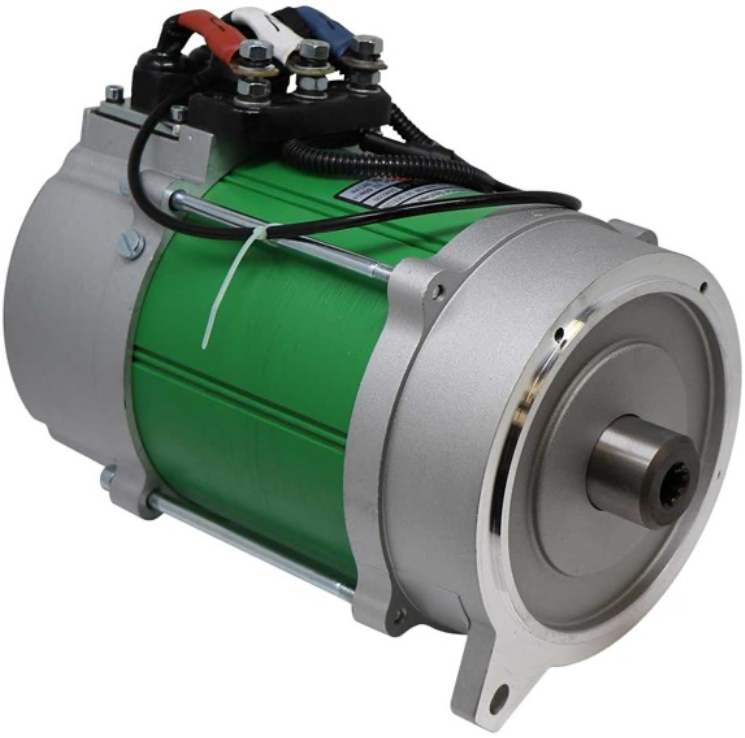

Navitas MAC977 5kW 10-Tooth AC Motor for ICON / Advanced EV TAC2

SKU: 221-10000977

Navitas model: MAC977 / 10-000977

Navitas 5 kW AC induction performance motor with a 10-tooth spline and integrated parking brake for compatible ICON and Advanced EV vehicles already upgraded to a Navitas TAC2 controller system.

Verified Application

• ICON vehicles with a compatible Navitas TAC2 conversion/controller system
• Advanced EV vehicles with a compatible Navitas TAC2 conversion/controller system
• Not compatible with factory-installed controllers
• FSIP states this motor is not compatible with Club Car vehicles

Manufacturer Specifications

• 5 kW AC induction motor
• Rated motor voltage: 34V AC RMS
• Rated current: 113A
• Rated speed: 2,785 RPM
• Operating range: 0–5,875 RPM
• Frequency: 0–200 Hz
• 10-tooth spline
• 48V ±10% parking brake
• 46 Nm static brake torque
• Class H insulation
• IP44 protection
• External speed sensor
• Internal temperature sensor

Installation Notes

• The vehicle must already have the compatible Navitas TAC2 system or be upgraded with the appropriate conversion hardware.
• Confirm controller, mounting, harness and brake compatibility before ordering.

The 34V AC RMS motor rating is an internal motor specification, not vehicle battery-pack voltage. The parking brake is rated 48V ±10%.
