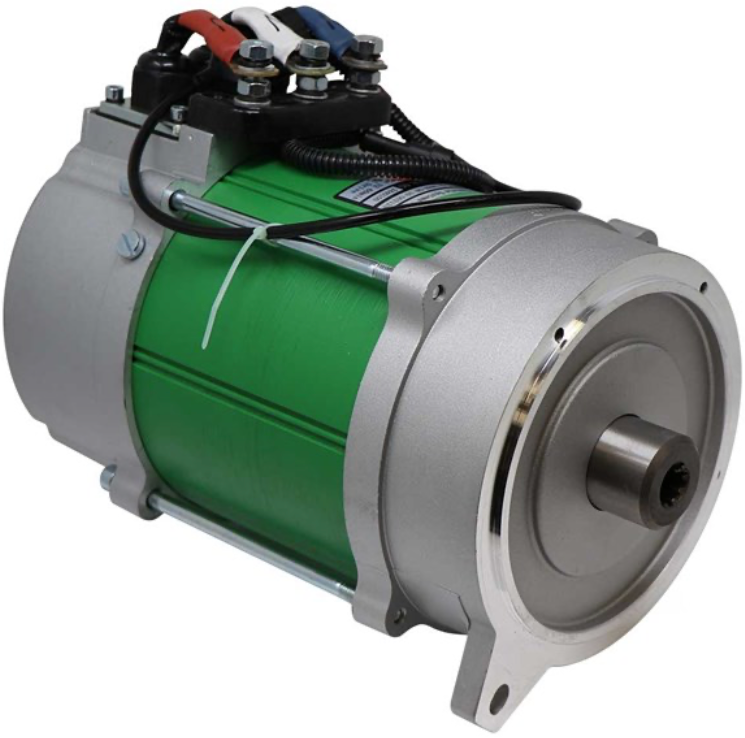

Navitas MAC972 5kW 19-Tooth AC Golf Cart Motor with Parking Brake

SKU: 221-10000972

Navitas model: MAC972 / 10-000972

Navitas 5 kW high-performance AC induction motor with a 19-tooth spline and integrated parking brake for compatible golf-car and low-speed EV applications.

Manufacturer Specifications

• 5 kW AC induction motor
• Rated motor voltage: 34V AC RMS
• Rated current: 113A
• Rated speed: 2,785 RPM
• Operating range: 0–5,875 RPM
• Frequency: 0–200 Hz
• 19-tooth spline
• 48V ±10% parking brake
• 46 Nm static brake torque
• Class H insulation
• IP44 protection
• External speed sensor
• Internal temperature sensor

Application Notes

• Navitas lists MAC972 for golf cars, utility vehicles, personnel carriers, UTVs and hunting buggies.
• Navitas does not publish a make/model/year chart for this exact MAC972 motor.
• Confirm 19-tooth spline, parking-brake requirement, compatible AC controller/conversion system, mounting and harness/sensor configuration before ordering.
• A vehicle originally equipped with DC drive requires an appropriate compatible AC conversion/controller system.

The 34V AC RMS motor rating is an internal motor specification, not vehicle battery-pack voltage. The parking brake is rated 48V ±10%.
