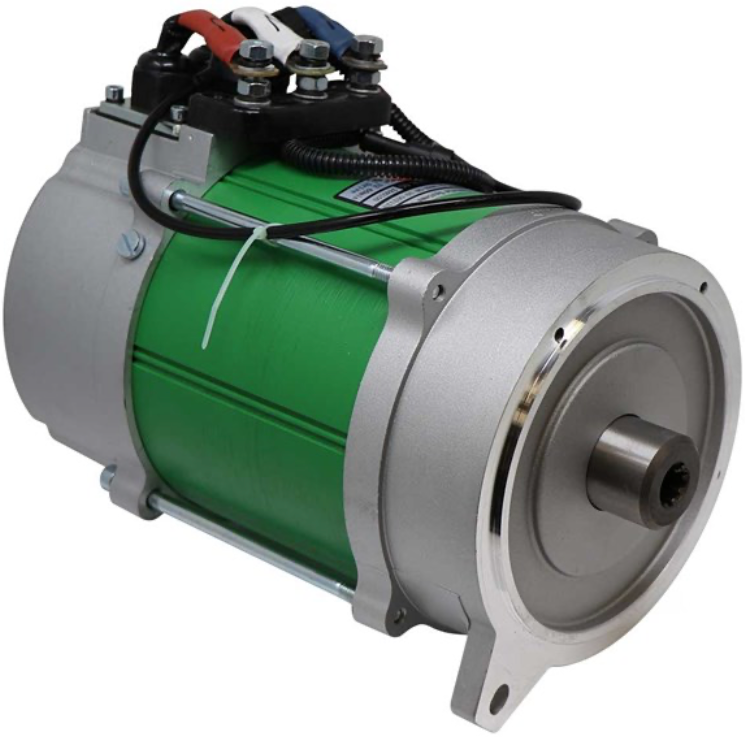

Navitas MAC976 Yamaha Drive2 4kW 19-Tooth AC Motor with Parking Brake | TAC2

SKU: 221-10000976

Navitas model: MAC976 / 10-000976

Navitas 4 kW AC induction performance motor with a 19-tooth spline and integrated parking brake for Yamaha Drive2 vehicles already upgraded to a compatible Navitas TAC2 controller system.

Verified Application

• Yamaha Drive2 vehicles with a compatible Navitas TAC2 conversion/controller system
• Not compatible with factory-installed controllers
• FSIP states this motor does not work on E-Z-GO vehicles

Manufacturer Specifications

• 4 kW AC induction motor
• Rated motor voltage: 34V AC RMS
• Rated current: 91A
• Rated speed: 3,600 RPM
• Operating range: 0–6,800 RPM
• Frequency: 0–123 Hz
• 19-tooth spline
• 48V ±10% parking brake
• 46 Nm static brake torque
• Class H insulation
• IP44 protection
• External speed sensor
• Internal temperature sensor

Installation Notes

• The vehicle must already have the compatible Navitas TAC2 system or be upgraded with the appropriate conversion hardware.
• FSIP does not publish a Drive2 model-year range for this standalone motor SKU.
• Confirm controller, mounting, harness, spline and brake compatibility before ordering.

The 34V AC RMS motor rating is an internal motor specification, not vehicle battery-pack voltage. The parking brake is rated 48V ±10%.
