E-Z-GO TXT 36V Series Torque Bundle — 1996-Up
D&D-sourced motor, controller and cabling paired with an MZJ contactor. This is a series-motor package, not a regen-controller or AC conversion.
Included — one of each

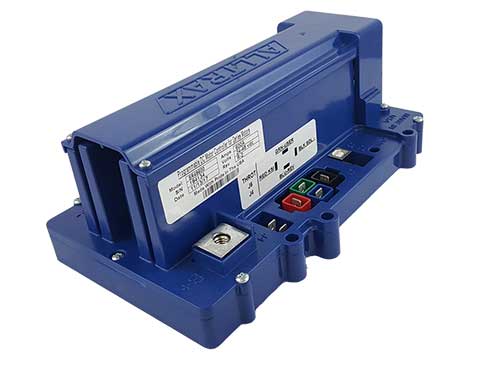

- Alltrax SR48400 400A series controller.
- D&D 170-010-0002 high-torque series motor.

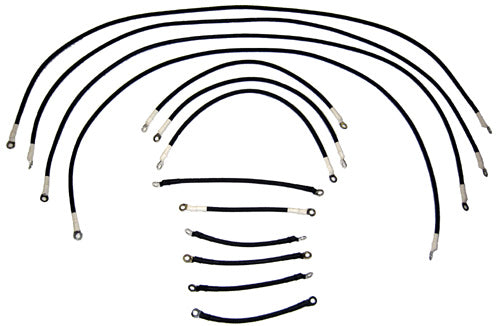

- DD-WIRE-EZGO-SERIES-96-4AWG D&D cable kit.
- MZJ-400D-36 36V-coil contactor.
Required application
Compatible 1996-up E-Z-GO TXT 36V series drivetrain with the matching battery arrangement. Verify motor outline, 19-tooth spline, suspension clearance, original controller and cabling. Not DCS, PDS, factory TXT48 or RXV AC. The wire kit imposes the narrower year/layout restriction.
Torque-focused is a motor characteristic, not a guaranteed towing or continuous-current rating. Check the complete vehicle and operating duty.
Installation checks
Set the SR to the correct throttle signal/ITS configuration and safe current limits. Verify forward/reverse switch rating and controller mounting adapter requirements. Included 4 AWG wiring meets the SR400 manual minimum conductor size; routing, lengths and duty still need verification.
Match MZJ36 coil activation, contact rating and mounting. Maximum operating voltage must remain within the published 60V DC switched-circuit limit. Battery, charger, labor, additional adapters, fuse and separately required diode/pre-charge parts are excluded. This is not a voltage-conversion kit. Modified applications require approval.
Photos are representative; supplied components follow the listed SKUs and application packing list.
Motor/controller guide · Cable guide · MZJ guide
Bundle SKU: BNDL-DD-EZS36-400-TRQ
